Brand Name : Metcera
Model Number : F12
Certification : ISO9001
Place of Origin : China
MOQ : 50 pcs
Price : US$5.03 per piece
Payment Terms : L/C,D/A,D/P,T/T,Western Union
Supply Ability : 1.6 million pieces per Month
Delivery Time : 15-20 Working Days
Packaging Details : 10pcs in a plastic box
Coating : Uncoated
Usage : External Turning
Hardness : HRA92.5
Material : TiCN Cermet
Color : Metal
Product name : F12
Workpiece : Carbon Steel,Alloy Steel
Machining method : Finishing and Semi-Finishing
Advantage : Wear Resistance
Application : Finishing
Grade : MC2010
Sample : Free
Transport : FedEX ,TNT,UPS,DHL
Ti(CN) based cermet is a new and prospective material that combines the toughness, high thermal conductivity, and good heat stability of metals with the high hardness, red hardness, and corrosion resistance of ceramics. These unique physical and chemical properties make cermet ideal for manufacturing special cutting tools, wear parts, and corrosion-resistant components.
| Grade | Density (g/cm³) | Hardness (HRA) | Transverse Rupture Strength (MPa) | Fracture Toughness (MPa*m¹/²) | Workpiece | Applications | Features |
|---|---|---|---|---|---|---|---|
| MC102A | 7.1 | 92.8 | 2000 | 8.5 | Aluminium Alloy, Nonferrous Alloy, Carbon Steel | Finishing, Semi-finishing, grooving | Low cutting force, high anti-adhesive, high quality roughness |
| MC102B | 7.1 | 93.2 | 1800 | 8.0 | Bearing Steel | ID/OD grooving, RD chamfer, sealing groove, in bearing industry | High red-hardness and wear resistance for dry cutting |
| MC1020 | 6.6 | 92.5 | 1600 | 9.5 | Carbon steel with hardness under 35HRC, Alloyed Steel | Finishing, Semi-finishing | Extraordinary wear resistance in continuous finishing machining. Provides stable finishing to machine steel, gray cast iron, and sintered alloy. High wear resistance and cost performance uncoated material |
| MC2010 | 6.8 | 92.8 | 2100 | 9.0 | Carbon steel with hardness under 38HRC, Alloyed Steel | Finishing, Semi-finishing | Anti-collapse and wear resistance performance strengthened material provides extra reliable roughness for extensive cutting conditions |
Thanks to our advanced equipment, highly qualified staff, and cutting-edge technology, our company has not only been ranked among the major manufacturers of metal cutting and processing tools in China but has also actively entered the global market.
|
|

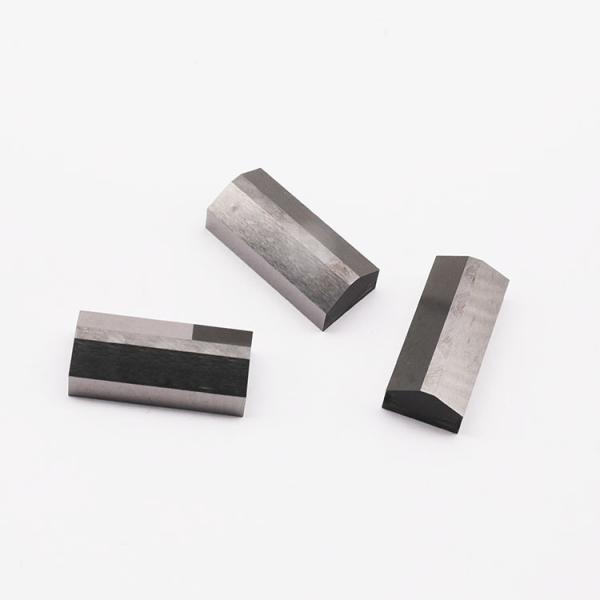

TiCN Based Cermet Bearing Inserts High Resistance Uncoated Wear Resistance F12 Images |
